Channel Type Color Sorter

Color Sorting Machine

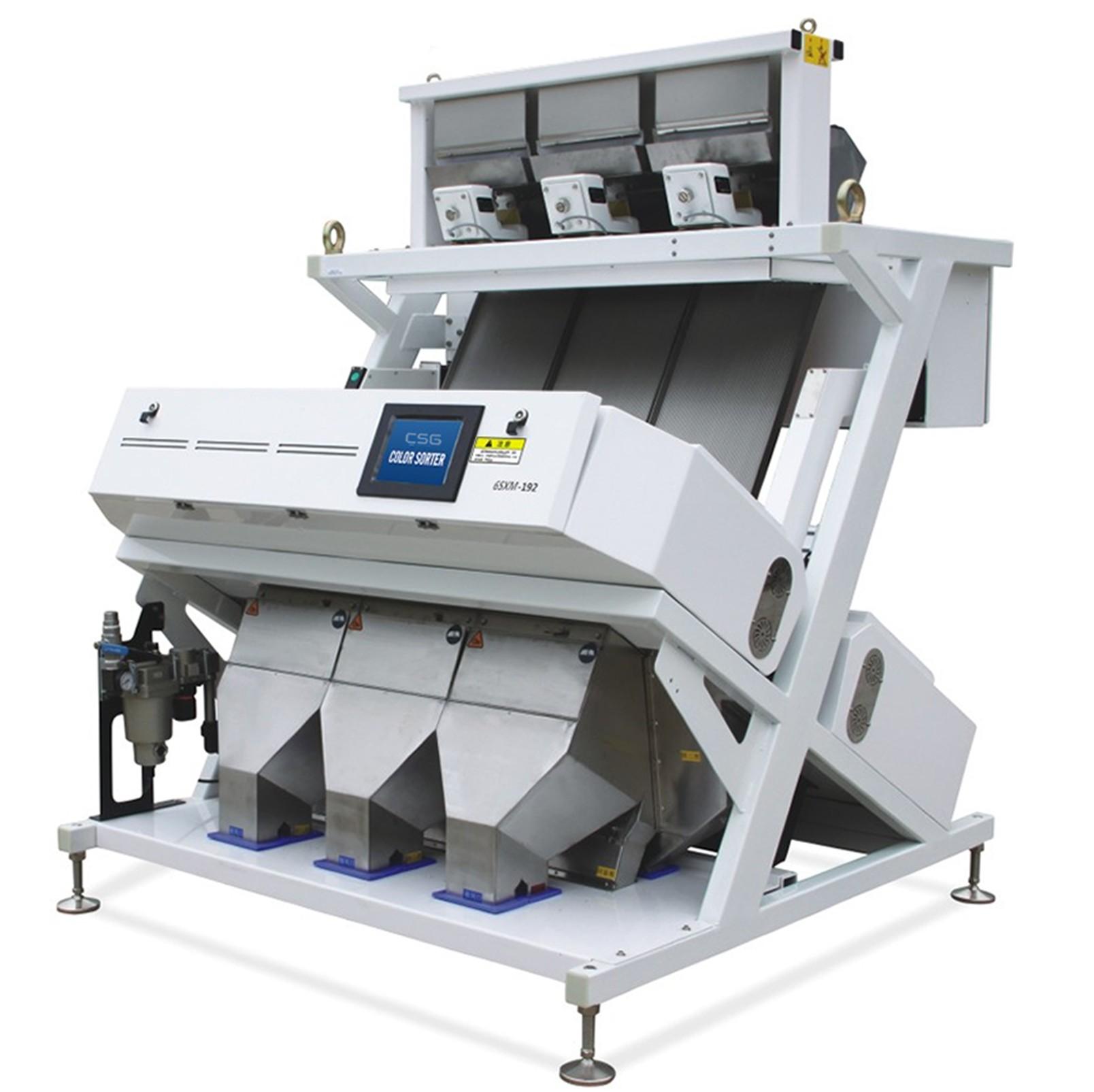

3 CHUTES COLOR SORTER

192 Channels Color Sorting Machine

Three chutes machine have 192 small channels, sorting materials based on the color difference of solid particles.

Ultra-high-precision sorting effect to enhance your product grade and value. Customer friendly interface makes your daily work simple and convenient

Model: M3
Chutes: 3
Channels: 192
Capacity: 2-5 T/H
Carryover rate(good:bad): > 15:1
Sorting Accuracy: > 99.9%
Voltage: 220V/50Hz(customizable)
Power: < 2KW
Air Consumption: < 1800L/min
Light Source: LED
Camera Pixel: 5400 Pixels
Image Sensor: CCD
Identification Accuracy: 0.08 mm2
Ejector(Solenoid Valve): 10 Billion Lifetimes / 0.04ms response times
Processing System: Full-color scan, DSP + FPGA
Weight: 1000kg
Size: 1795*1644*2013mm

1. FOOD SORTING: Rice, Corn, Wheat, Peanut, Nuts, Coffee Bean, Seeds, Pistachio nuts, Cashew Nut, etc.
2. LIGHT PRODUCT SORTING: Tea, Dried Flower, Herb, Dehydrated Vegetables, etc.
3. INDUSTRIAL SORTING: Ore, Gangue , Waste, Plastic, Salt, Suger, Glass, etc

1. RGB full color tri-chromatic CCD image acquisition system. High camera resolution 5340 pixel identifying tiny defects up to 0.01mm2
2. High quality ejector with 5-10 billion ejections life low air consumption
3. Most unique intelligent LED with cold shadowless light source and super long life span, high lighting efficiency
4. Accurate dust collecting position design to secure sorting room spotlessly clean keeping high identification
5. Strong industry-grade digitization processor, image acquisition and processing in high speed, consistency of signal path and signal reliability is secured
6. Excellent combination of mechanical structure and tri-chromatic control system, guarantee 99.999% accuracy and amazing 50:1 rejection rate.
7. Simplified customer-friendly GUI design highly increases the ease of operation
8. International high-end full-color line scan technology, DSP + FPGA processing the international forefront of technology, combining a variety of colors and shapes model complex algorithms, to provide "color selection + shape selected" function for different materials, a variety of modes set free.
