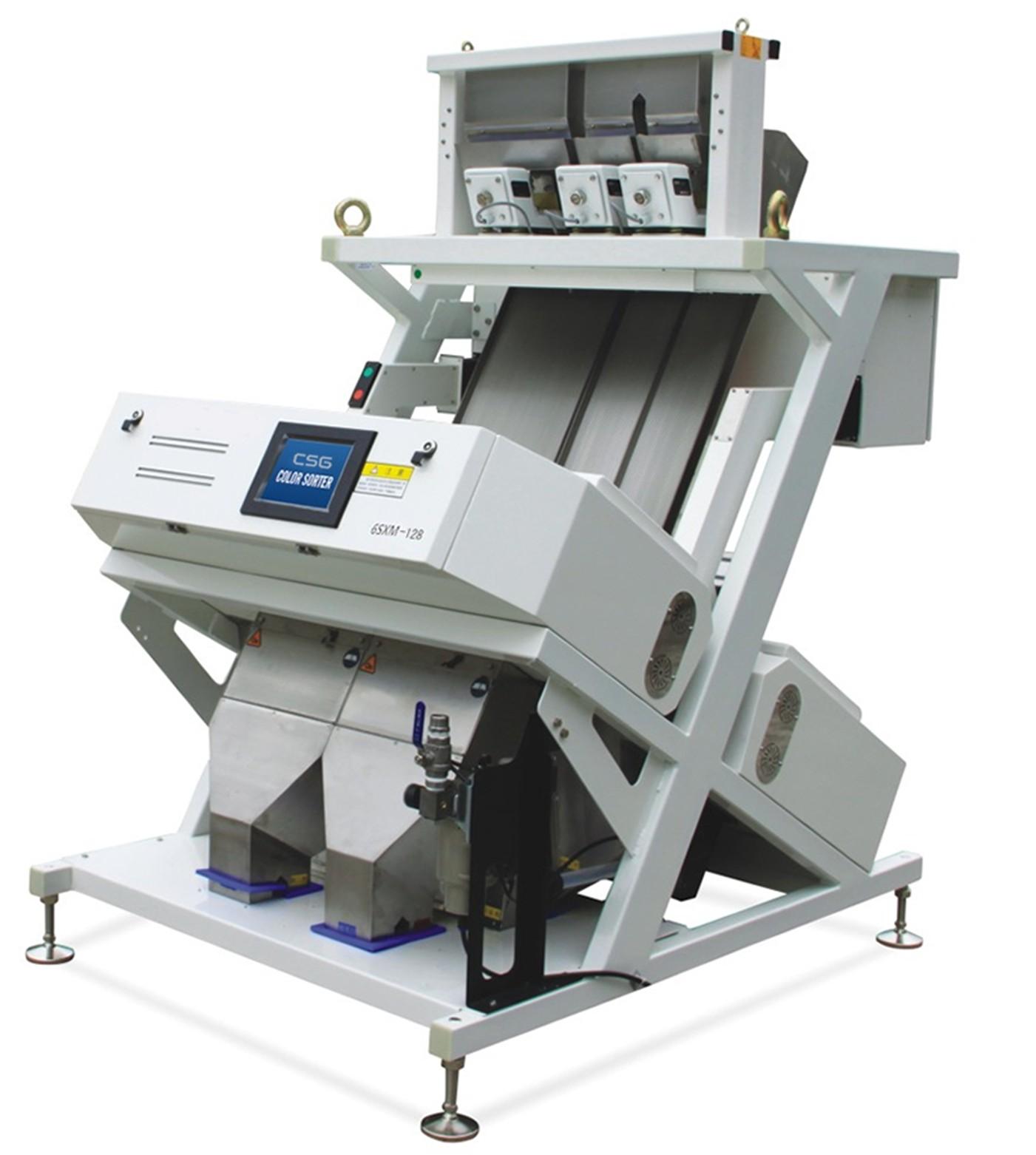

2 CHUTES COLOR SORTER
128 Channels Color Sorting Machine
Two chutes machine have 128 small channels, sorting materials based on the color difference of solid particles.
Ultra-high-precision sorting effect to enhance your product grade and value. Customer friendly interface makes your daily work simple and convenient
Model: M2
Chutes: 2
Channels: 128
Capacity: 1-3 T/H
Carryover rate(good:bad): > 15:1
Sorting Accuracy: > 99.9%
Voltage: 220V/50Hz(customizable)
Power: < 1.5KW
Air Consumption: < 1500L/min
Light Source: LED
Camera Pixel: 5400 Pixels
Image Sensor: CCD
Identification Accuracy: 0.08 mm2
Ejector(Solenoid Valve): 10 Billion Lifetimes / 0.04ms response times
Processing System: Full-color scan, DSP + FPGA
Weight: 700kg
Size: 1477*1644*2013mm
1. FOOD SORTING: Rice, Corn, Wheat, Peanut, Nuts, Coffee Bean, Seeds, Pistachio nuts, Cashew Nut, etc.
2. LIGHT PRODUCT SORTING: Tea, Dried Flower, Herb, Dehydrated Vegetables, etc.
3. INDUSTRIAL SORTING: Ore, Gangue , Waste, Plastic, Salt, Suger, Glass, etc
1. RGB full color tri-chromatic CCD image acquisition system. High camera resolution 5340 pixel identifying tiny defects up to 0.01mm2
2. High quality ejector with 5-10 billion ejections life low air consumption
3. Most unique intelligent LED with cold shadowless light source and super long life span, high lighting efficiency
4. Accurate dust collecting position design to secure sorting room spotlessly clean keeping high identification
5. Strong industry-grade digitization processor, image acquisition and processing in high speed, consistency of signal path and signal reliability is
secured
6. Excellent combination of mechanical structure and tri-chromatic control system, guarantee 99.999% accuracy and amazing 50:1 rejection rate.
7. Simplified customer-friendly GUI design highly increases the ease of operation
8. International high-end full-color line scan technology, DSP + FPGA processing the international forefront of technology, combining a variety of colors and
shapes model complex algorithms, to provide "color selection + shape selected" function for different materials, a variety of modes set free.
World Leading Color Sorter Manufacturing Center
Leading Sensor-Based Optical Sorting Solutions Provider
Focus on optical sorting technology innovation. the pursuit of comprehensive, professional, timely and enthusiastic service to win the trust of customers, growing together with customers.
CSG relies on the technical team who from University of Science and Technology of China and National University of Defense Technology. and based on himself research and manufacturing experiences accumulated over the past 30 years. Created China's first optical sorting technology research center. Manufacturing center is located in Hefei High-tech Development Zone of China, have an annual production capacity of 5000 sets of sensor-based color sorter and have an annual sales 50 million USA dollar.
