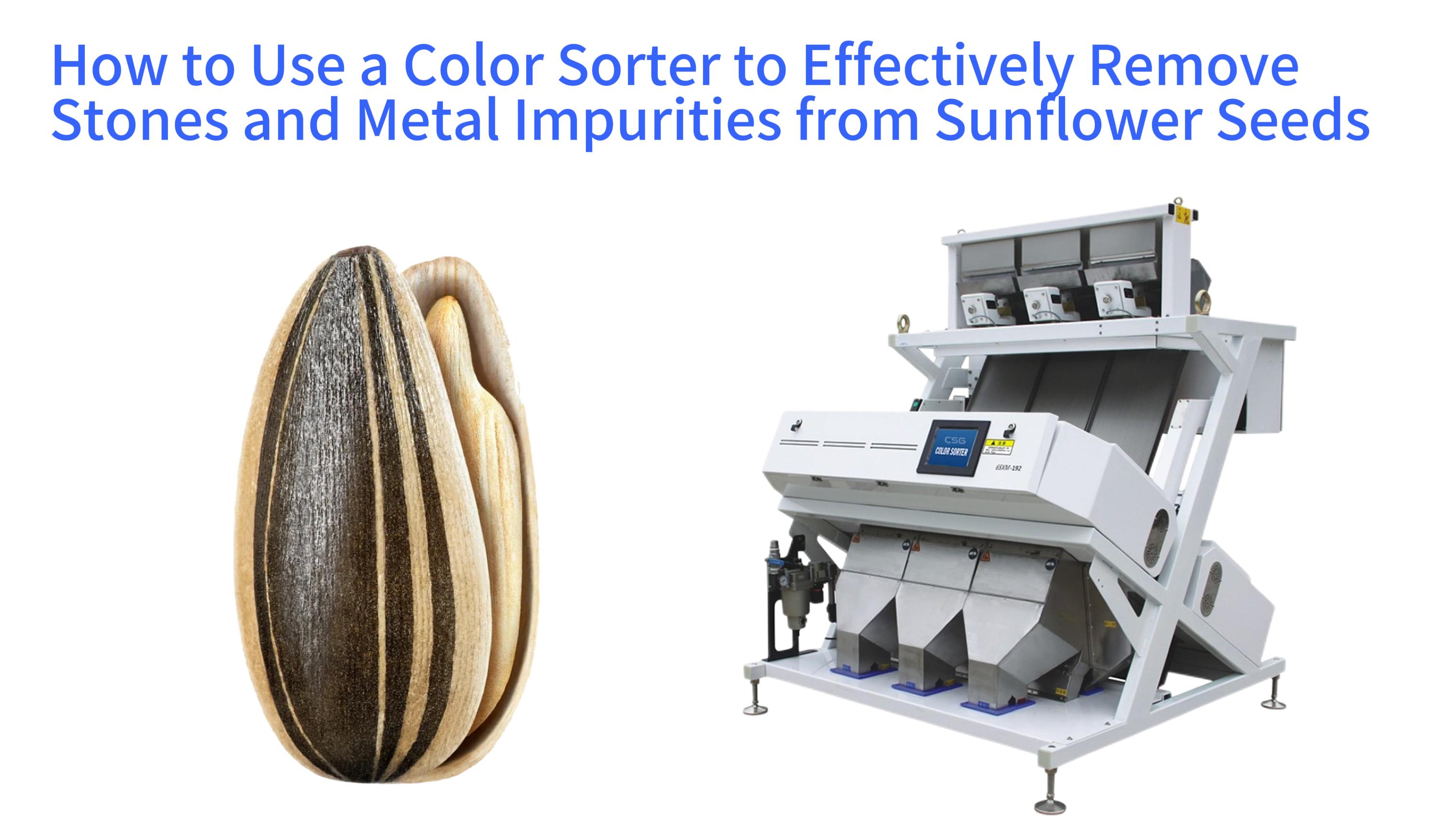

How to Use a Color Sorter to Effectively Remove Stones and Metal Impurities from Sunflower Seeds

The presence of stones and metal fragments in sunflower seeds presents a significant challenge for processors, directly impacting product safety, equipment integrity, and brand reputation. Traditional sieving and magnetic separation methods often prove insufficient for removing impurities similar in size and shape to the seeds. This comprehensive guide details the systematic application of modern color sorting technology to address this specific issue. It provides a thorough examination of the multi-sensor detection principles enabling this precision, outlines critical considerations for machine selection and configuration, and offers practical methodologies for parameter optimization and process integration. The subsequent sections delve into establishing robust performance verification protocols and a dedicated maintenance regimen, forming a complete framework for achieving and sustaining the highest levels of product purity and operational reliability in sunflower seed processing lines. This approach transforms the color sorter from a simple quality control checkpoint into a fundamental component of a comprehensive food safety strategy.

Understanding the Core Principles of Impurity Removal

The fundamental limitation of conventional mechanical separation lies in its reliance on physical dimensions and magnetic properties alone. Modern color sorters overcome this by employing a multi-layered sensory analysis that discriminates based on both external and internal material characteristics. This technological shift allows for the precise identification of non-magnetic metals and stones which visually mimic edible seeds. The core principle involves a sequential and synergistic interrogation of each individual particle passing through the detection zone. Data from different sensor modalities are captured simultaneously and processed through advanced algorithms to make a definitive ejection decision. This multi-spectral and multi-sensory foundation provides a far more reliable means of impurity removal compared to any single-method technology, ensuring contaminants are rejected regardless of their superficial appearance.

Optical Recognition and Color Differentiation

High-resolution line-scan cameras serve as the primary sensory layer, capturing detailed images of each seed and impurity at extremely high speeds. These cameras analyze reflected visible light to detect contrasts in color, shade, and surface texture. A dark grey stone or a discolored metal fragment often exhibits a different light reflectance pattern compared to the healthy hull of a sunflower seed. The system's software defines acceptable color ranges, and particles falling outside these predefined parameters are flagged for rejection. This visible spectrum analysis remains a crucial first filter, effectively handling a wide array of obvious foreign materials and severely defective seeds that present a clear visual anomaly. The accuracy of this stage is heavily dependent on consistent, high-intensity LED illumination to eliminate shadows and ensure uniform imaging conditions across all sorting channels.

Deep Probing with Near-Infrared Technology

Near-infrared (NIR) spectroscopy provides a deeper analytical layer by probing the molecular composition of materials. When NIR light is directed at a particle, distinct chemical bonds within the material absorb specific wavelengths of the light. Organic compounds like those in sunflower seeds—comprising oils, proteins, and carbohydrates—have a unique absorption signature. Inorganic materials such as silicates in stones or oxides on metal surfaces exhibit fundamentally different NIR absorption spectra. An integrated NIR sensor detects these spectral differences, enabling the sorter to identify impurities that are visually identical to good product. For instance, a pale-colored stone or a piece of mud with a similar hue to a seed can be reliably distinguished. This capability is paramount for achieving high-purity standards, as explained in the context of advanced ore sorting technology which relies on similar principles.

Specialized Application of Metal Detection Modules

Dedicated electromagnetic induction modules offer a targeted and fail-safe method for detecting metallic contaminants. These modules generate a high-frequency electromagnetic field within the detection zone. When a conductive metal particle—whether ferrous or non-ferrous—passes through this field, it causes a detectable disturbance. This signal is independent of the particle's color, size, or surface contamination, providing a 100% reliable detection method for metallic impurities. The integration of this module directly into the color sorter's chute creates a unified inspection point. This eliminates the need for a separate, standalone metal detector downstream, streamlining the production line and reducing the risk of contamination between inspection and packaging. The sensitivity of these modules can be calibrated to detect extremely fine metal fragments, down to sub-millimeter sizes, which might be missed by other methods.

Intelligent Algorithmic Fusion of Multi-Source Data

The true power of a modern sorter lies in its processing system's ability to fuse data from all available sensors. A central processing unit, utilizing technologies like Digital Signal Processors (DSP) and Field-Programmable Gate Arrays (FPGA), evaluates the input from the RGB camera, the NIR sensor, and the metal detector in real-time. Sophisticated algorithms weigh the evidence from each source to make a final, high-confidence ejection decision. For example, a particle giving a weak color signal but a strong NIR impurity signature and no metal signal would be classified as a stone. This data fusion dramatically reduces false positives—where good seeds are mistakenly ejected—and false negatives—where impurities are missed. The system's learning capability allows it to refine these decision boundaries over time, adapting to subtle variations in the feedstock for continuously improving performance, a concept central to the technical development trends in sorting equipment.

Selecting and Configuring Your Sorter for Maximum Efficacy

Investing in a color sorter capable of exceptional stone and metal removal requires a selection process focused on specific hardware capabilities beyond basic color sorting. The machine must be viewed as a system of integrated components, each contributing to the final outcome. Key differentiators include the types of sensors installed, the performance specifications of the ejection system, and the mechanical design of the feeding pathway. A machine configured for high-capacity sorting of visibly defective seeds may lack the specialized sensors needed for reliable inorganic impurity detection. Therefore, processors must articulate this specific requirement to suppliers, ensuring the proposed system includes the necessary technological modules. The configuration phase also involves planning for the physical characteristics of the expected impurities, such as their size range and frequency, to select appropriate channel widths and ejection valve power.

Critical Sensor Configuration: Camera, NIR, and Metal Detection

A robust configuration for impurity removal mandates a sensor suite that extends beyond standard color cameras. While high-pixel-count RGB cameras are essential for basic sorting, the addition of a near-infrared (NIR) sensor is highly recommended for reliable stone detection. Furthermore, an integrated electromagnetic metal detection module is virtually indispensable for comprehensive food safety. This triple-sensor setup—RGB, NIR, and metal detector—provides overlapping layers of inspection, creating a safety net where one technology may have a blind spot. The calibration and synchronization of these sensors are critical; they must scan the exact same particle volume simultaneously to allow for accurate data fusion. When evaluating equipment, verifying the presence, quality, and integration level of these specific sensors is the most crucial step in ensuring the machine meets the stringent requirement of removing non-visual contaminants, similar to the requirements for a nuts color sorter dealing with similar density-based impurities.

Ejection Valve System Requirements

The precision of the detection system must be matched by the accuracy and speed of the ejection mechanism. Solenoid-driven air valves are responsible for physically removing the identified impurities. To effectively reject small, dense particles like pebbles or metal shavings, these valves must have an extremely fast response time, typically measured in fractions of a millisecond. A rapid response ensures the firing command is executed at the exact moment the impurity passes over the reject nozzle. Furthermore, valve durability is paramount; they must maintain consistent performance over hundreds of millions of cycles under continuous operation. The arrangement of nozzles across the sorting width must provide complete coverage without gaps, ensuring an impurity detected anywhere in the channel can be targeted. The supporting air supply system, including compressor and dryer, must deliver clean, dry air at stable pressure to guarantee each ejection pulse is forceful and consistent.

Feeding System and Channel Design Considerations

Consistent and orderly presentation of feedstock to the sensors is a prerequisite for high accuracy. A well-designed vibratory feeder spreads the stream of sunflower seeds into a uniform, single-layer curtain. Any overlapping or clumping of seeds can shield impurities from the sensors or cause misidentification. For processing lines that may encounter larger stones, the physical design of the feeding trays and free-fall channels must prevent blockages. Channel widths should be selected based on the maximum seed size, but also with consideration for the potential size of impurities. Anti-jamming designs and easy-access panels for clearing obstructions are practical features that reduce downtime. The entire feeding path should be smooth and free of ledges where material can accumulate, as such accumulation can later dislodge and contaminate clean product, negating the sorter's work.

Pre-Set Solution Selection Based on Impurity Profile

Modern sorters often come with pre-loaded sorting programs or "models" tailored for specific products and impurity types. For sunflower seeds, selecting or creating a model optimized for density-based impurity removal is essential. This model will have pre-configured emphasis on the data from the NIR and metal detection sensors, with algorithmic weights set to prioritize the rejection of inorganic matter. Operators can often fine-tune these models based on their specific feedstock. For instance, if the raw material is known to contain a high proportion of a particular type of river stone, the model's sensitivity to the NIR signature of silicate can be increased. This ability to customize the machine's intelligence for the exact contamination profile streamlines setup and optimizes performance from the initial commissioning, a benefit also seen in specialized applications like tea sorting where subtle color and shape distinctions are critical.

Optimizing Sorting Parameters for Precision Targeting

Following installation, the meticulous adjustment of operational parameters transforms a capable machine into an optimized one. These software-based settings dictate how the machine interprets sensor data and executes physical rejection. The goal is to achieve the highest possible impurity removal rate while minimizing the loss of good product, a balance quantified by the metrics of "ejection efficiency" and "good product yield." Parameter optimization is not a one-time event but an iterative process that responds to changes in feedstock quality, environmental conditions, and production targets. It requires a systematic approach, beginning with broad settings to establish a baseline and proceeding to fine-grained adjustments that address edge cases and subtle impurity types. This process leverages the real-time feedback provided by the machine's own monitoring systems and offline quality control checks.

Sensitivity and Threshold Setting

Sensitivity parameters control how readily the system classifies a particle as an impurity. A higher sensitivity setting lowers the threshold for rejection, making the machine more aggressive in removing suspect particles. This can increase the removal rate of tiny stones and metal flakes. However, an overly high sensitivity can lead to increased false rejects, where acceptable seeds with minor color variations or surface defects are erroneously ejected. Conversely, a lower sensitivity conserves good yield but risks allowing more impurities to pass. The optimal point is found through controlled testing: processing a sample with a known quantity and type of impurities, then analyzing the reject fraction for good product loss and the accept fraction for residual contamination. This empirical adjustment ensures the machine is calibrated for the best economic and quality outcome.

Delay Time and Ejection Duration Adjustment

The temporal precision of the ejection system is governed by delay and duration settings. The delay time is the micro-second interval between the sensor identifying an impurity and the firing command being sent to the corresponding air valve. This must be calculated based on the distance the particle falls from the detection point to the ejection point and its terminal velocity. An incorrect delay will cause the air blast to fire before or after the impurity is in the nozzle's trajectory. The ejection duration, or valve open time, determines the length of the air pulse. A short pulse may be sufficient for a small, light impurity, but a larger, denser stone requires a longer, more forceful blast to divert it from its path into the reject chute. These settings are interdependent and must be tuned together to achieve a sharp, accurate separation between the streams of good and bad product.

Background Plate and Lighting System Optimization

The visual contrast between a particle and its background is fundamental for accurate camera and NIR analysis. The background plate is positioned behind the falling curtain of material. Its color and reflectance properties are chosen to maximize the contrast with both the desired product and the expected impurities. For sunflower seeds with dark hulls, a light background may be standard, but specific impurities might be better highlighted against a different hue. The LED lighting system must provide intense, uniform, and spectrally consistent illumination across the entire sorting width. Strobe timing is synchronized with the camera capture to freeze motion. The angle of illumination can be adjusted to highlight surface texture differences; for example, specular reflection from a smooth metal surface versus the matte finish of a seed hull. Regular checks for light intensity decay or background plate staining are necessary to maintain this optimized contrast over time.

Classification Strategy for Different Impurity Sizes

Feedstock often contains a mixture of impurity sizes, from fine dust and minute metal fragments to pebbles several times larger than a seed. A single, monolithic sorting parameter set may not be optimal for this entire range. Advanced sorters can divide the detection zone into virtual regions, allowing for different sensitivity settings at different points. For example, the central region of a seed's image might be analyzed with one sensitivity for detecting internal defects, while the edges are analyzed with another for spotting attached foreign material. Furthermore, the identification of a very large impurity might trigger a different ejection response, such as activating multiple adjacent nozzles simultaneously to ensure its removal. This hierarchical processing strategy allows the machine to apply the most appropriate level of scrutiny and force to each specific threat, enhancing overall efficiency and protecting the final product quality destined for sensitive applications where purity is non-negotiable.

Integrating the Sorter into Pre- and Post-Processing

The performance of a color sorter is profoundly influenced by its context within the larger processing line. It functions most effectively not as a standalone unit but as the critical centerpiece of a designed impurity removal strategy. Upstream equipment prepares the feedstock, removing the bulk of easy-to-separate contaminants to prevent overloading the sorter's sensitive detection and ejection systems. Downstream handling must securely isolate the rejected waste and protect the cleaned product from re-contamination. A holistic view of the entire process flow from raw intake to finished packaging is necessary to unlock the sorter's full potential. This integration considers material handling, environmental control, and data synchronization, ensuring each stage supports the others in achieving the common goal of maximum purity and operational uptime.

The Critical Role of Upstream Pre-Cleaning and Magnetic Separation

Deploying a color sorter to remove every piece of dust, stalk, and magnetic metal is an inefficient use of its advanced capabilities. Primary cleaning stages, such as scalpers, sieves, and destoners, should remove the majority of coarse, light, and high-density impurities based on size, shape, and weight differences. A powerful drum or plate magnet should be installed immediately before the sorter to extract ferrous metals. This pre-cleaning serves two vital purposes. First, it reduces the physical burden on the sorter, allowing it to operate at higher effective throughput rates focused on the more challenging impurities. Second, it protects the sorter's delicate optical surfaces from dust buildup and prevents larger, abrasive stones from causing mechanical damage to the feeding system or ejection nozzles. This layered defense-in-depth approach is a fundamental principle in efficient processing plant design.

Feedstock Uniformity Control for Stable Recognition

A chaotic or congested flow of material into the sorter's detection chamber is a primary cause of performance degradation. Implementing controlled feeding is therefore essential. This is typically achieved using a combination of a surge hopper to buffer incoming material and a precisely engineered vibratory feeder. The feeder's amplitude and frequency are tuned to distribute seeds into a consistent, monolayer curtain where each particle is spatially separated. This guarantees every seed and impurity is fully exposed to the sensors without being obscured by another. Any deviation from this ideal feed condition, such as clumping or gaps in the curtain, directly translates to missed impurities or wasted good product. Continuous monitoring of the feed rate and curtain quality is a standard operating procedure for maintaining peak sorting accuracy throughout a production run.

Post-Sorting Conveyance: Segregation of Accepts and Rejects

The physical separation achieved by the air blast must be made permanent by the design of the collection system. The chute that carries accepted seeds away must be completely isolated from the path taken by rejected impurities. A common design flaw is allowing dust or bouncing particles from the reject stream to cross back into the accept stream. This is especially critical for dense impurities like stones and metal, which can carry significant momentum. Baffles, sealed partitions, and sufficient spatial separation between the final collection points are necessary. The reject collection bin should be easily accessible for emptying but designed to prevent any spillage back into the processing area. For high-value products, some installations include a secondary inspection or even a small multi-function sorter on the accept stream as a final verification step before packaging.

Dust Control and Operational Environment Maintenance

Processing sunflower seeds generates a significant amount of dust and fine particulate matter. This dust, if allowed to accumulate, poses a severe threat to the sorter's optical components. A film of dust on camera lenses, LED light covers, or background plates will scatter light, reduce contrast, and degrade image clarity, leading to a steady decline in sorting accuracy. An integrated dust extraction system, comprising suction hoods and industrial air filters, is mandatory. This system should actively remove dust from the immediate vicinity of the detection zone and the interior of the machine cabinet. Maintaining a positive air pressure within sensitive electronic compartments can also help keep dust out. Regular cleaning schedules for all optical surfaces, as part of preventative maintenance, are non-negotiable for sustaining the machine's designed performance specifications in such a challenging environment.

Verifying and Monitoring Sorting Performance

Establishing objective, data-driven methods to verify the color sorter's effectiveness is crucial for quality assurance and continuous improvement. Reliance on sporadic visual inspection is insufficient. A formalized performance monitoring protocol translates operational activity into measurable key performance indicators (KPIs). These KPIs, primarily focused on impurity removal rate and good product retention, provide a quantitative basis for evaluating machine settings, assessing feedstock variability, and identifying maintenance needs. This systematic approach moves quality control from a reactive to a proactive stance. It enables processors to demonstrate compliance with internal and external purity standards, provides evidence for certifications, and creates a historical performance record that is invaluable for troubleshooting and capacity planning.

Establishing a Standard Sampling and Inspection Procedure

A statistically valid sampling method must be implemented to assess the sorter's output. This involves periodically extracting small, representative samples from the accepted product stream at defined time intervals. These samples are then subjected to detailed manual or instrumental analysis. A common laboratory method is to spread the sample over a tray and meticulously separate and count any remaining foreign material, categorizing it by type (stone, metal, other seed, etc.). The weight or count of impurities is then compared to the total sample weight to calculate a residual impurity percentage. The frequency and sample size should be determined based on production volume and risk assessment. This manual check serves as the ground truth that validates the electronic sorting process and can uncover impurity types the machine may be systematically missing, prompting a parameter re-adjustment.

Tracking Key Performance Indicators: Ejection Rate and Good Yield

Two primary KPIs define the economic and qualitative performance of the sorter. The Impurity Ejection Rate measures the machine's effectiveness in removing contaminants. It is calculated by analyzing the reject fraction to determine what percentage of the total impurities present in the feedstock were successfully removed. A rate of 99.5% or higher is often targeted for critical impurities like metal and stones. The Good Product Yield, or its inverse, the Good Product Loss, measures efficiency. It quantifies the percentage of acceptable sunflower seeds that were mistakenly ejected alongside the impurities. This loss represents a direct financial cost. Modern sorters have built-in software that provides real-time estimates of these metrics based on ejection counts and throughput weights. Tracking these KPIs on a shift-by-shift or batch-by-batch basis reveals trends and correlates performance changes with specific feedstock lots or machine settings, a practice equally vital in evaluating any color sorter's long-term value.

Utilizing Data Logging and Cloud Analytics Functions

Advanced sorting systems log vast amounts of operational data, including throughput tonnage, ejection counts per channel, valve firing frequency, and sensor health status. Leveraging this data is key to predictive monitoring. Historical logs can be analyzed to identify gradual performance drifts that might precede a failure, such as a slow decline in ejection accuracy on a specific channel indicating a clogging nozzle or a failing light. Cloud-connected systems enable remote monitoring and analysis, allowing technical specialists to diagnose issues without being on-site. They can also facilitate fleet management for operations with multiple machines, comparing performance across lines and sites. This shift from periodic manual checks to continuous data-driven oversight enables a more sophisticated understanding of machine behavior and supports a condition-based maintenance strategy rather than a fixed-time schedule.

Conducting Periodic Challenge Tests

To empirically verify the sorter's detection limits, periodic challenge tests are recommended. This involves intentionally introducing a known quantity and type of "marker" impurities into the feedstock upstream of the sorter. These markers should be representative of the worst-case contaminants, such as small stones of a specific color or non-magnetic metal pieces of a defined size. The processed output is then carefully inspected to recover these markers. The recovery rate provides a direct measure of the machine's current capability for that specific threat. This test bypasses the variability of natural feedstock and gives an unambiguous performance benchmark. It is particularly useful after major maintenance, software updates, or when processing a new type of raw material. The results can be used to fine-tune parameters with extreme precision, ensuring the machine is optimally configured to handle its most critical task, much like the calibration required for an X-ray sorting system detecting internal density variations.

Maintenance to Ensure Long-Term Impurity Removal Capability

Sustaining the high level of performance required for removing stones and metal over thousands of operating hours demands a rigorous and disciplined maintenance regimen. The precision of the sorting process is vulnerable to gradual degradation from wear, contamination, and component aging. A proactive maintenance schedule, focused on the systems most critical to detection and ejection accuracy, prevents this decline. This regimen is not merely about preventing breakdowns but about preserving the machine's inherent capability. It involves scheduled inspections, cleaning, calibration, and part replacement based on usage rather than failure. Documenting all maintenance activities creates a lifecycle record that supports operational planning and informs future capital investment decisions, ensuring the sorting asset continues to deliver a return by protecting product quality and brand equity.

Regular Cleaning and Calibration of the Optical Sensing System

The optical pathway is the sorter's most sensitive subsystem. Any obstruction or degradation directly impairs its ability to see impurities. A daily cleaning routine for the protective glass covering the cameras and lights is essential to remove dust and oil film. The background plate must also be kept clean and free of scratches. Beyond cleaning, periodic calibration is necessary to ensure sensor alignment and color fidelity. This may involve running predefined calibration samples through the machine so its software can adjust for any minor drifts in camera sensitivity or light output. The precision of this calibration directly affects the repeatability of sorting decisions. Neglecting optical maintenance leads to a slow, often unnoticed, decay in sorting accuracy, ultimately allowing more impurities to pass through while potentially increasing good product loss as the system compensates with broader rejection parameters.

Inspection, Cleaning, and Testing of Ejection Valves

The solenoid valves are high-speed mechanical components subject to wear. A blocked or partially blocked nozzle will fail to eject an impurity, creating a direct defect in the final product. A worn valve may fire weakly or with inconsistent timing. A scheduled maintenance task involves inspecting the nozzle array for blockages from seed fragments or compressed air contaminants. Each valve should be tested individually using the machine's diagnostic software to verify its response time and air volume. Valve diaphragms and seals have a finite lifespan and should be replaced on a preventive schedule based on the manufacturer's recommendations and the observed firing count. Keeping a stock of critical valve parts minimizes downtime. The air supply system feeding the valves, including filters and dryers, must be maintained to ensure the air is clean, dry, and at the correct pressure, as moisture or oil in the lines can cause valve sticking and corrosion.

Maintenance of Feeding Channels and Vibratory Mechanisms

Consistent feeding is foundational to accurate sorting. The vibratory feeder's motors, springs, or electromagnetic drives must be inspected for wear or damage that could alter the feed rate or curtain pattern. The feeding trays and channels that guide seeds into the detection zone should be smooth and free of buildup. Residual oil from seeds or accumulated dust can create sticky patches that disrupt the smooth flow, causing seeds to tumble or clump. Regular cleaning with appropriate, non-abrasive methods is required. Checking for physical damage like dents or warping is also important, as these can create turbulence in the particle stream. Ensuring all fasteners on the feeding assembly are tight prevents vibrations from causing misalignment over time, which could lead to seeds falling outside the optimal sensor view.

Background Plate Replacement and Light System Attenuation Monitoring

Both the background plate and the LED light sources are consumable components with a gradual degradation curve. The background plate can become permanently stained or scratched from constant particle impact. Even minor scratches can create shadow patterns that the camera may misinterpret as impurities, causing false rejects. The intensity and spectral output of LED banks diminish slowly over tens of thousands of hours. This light decay reduces the signal-to-noise ratio for the cameras, making subtle impurity features harder to detect. Monitoring systems often include light intensity diagnostics. Planning for the periodic replacement of these components—perhaps annually for background plates and every few years for LED banks based on usage—is part of a total cost of ownership model. Proactively replacing them before failure prevents an unplanned drop in quality and maintains the consistent performance required for meeting stringent food industry standards where safety margins are paramount.
