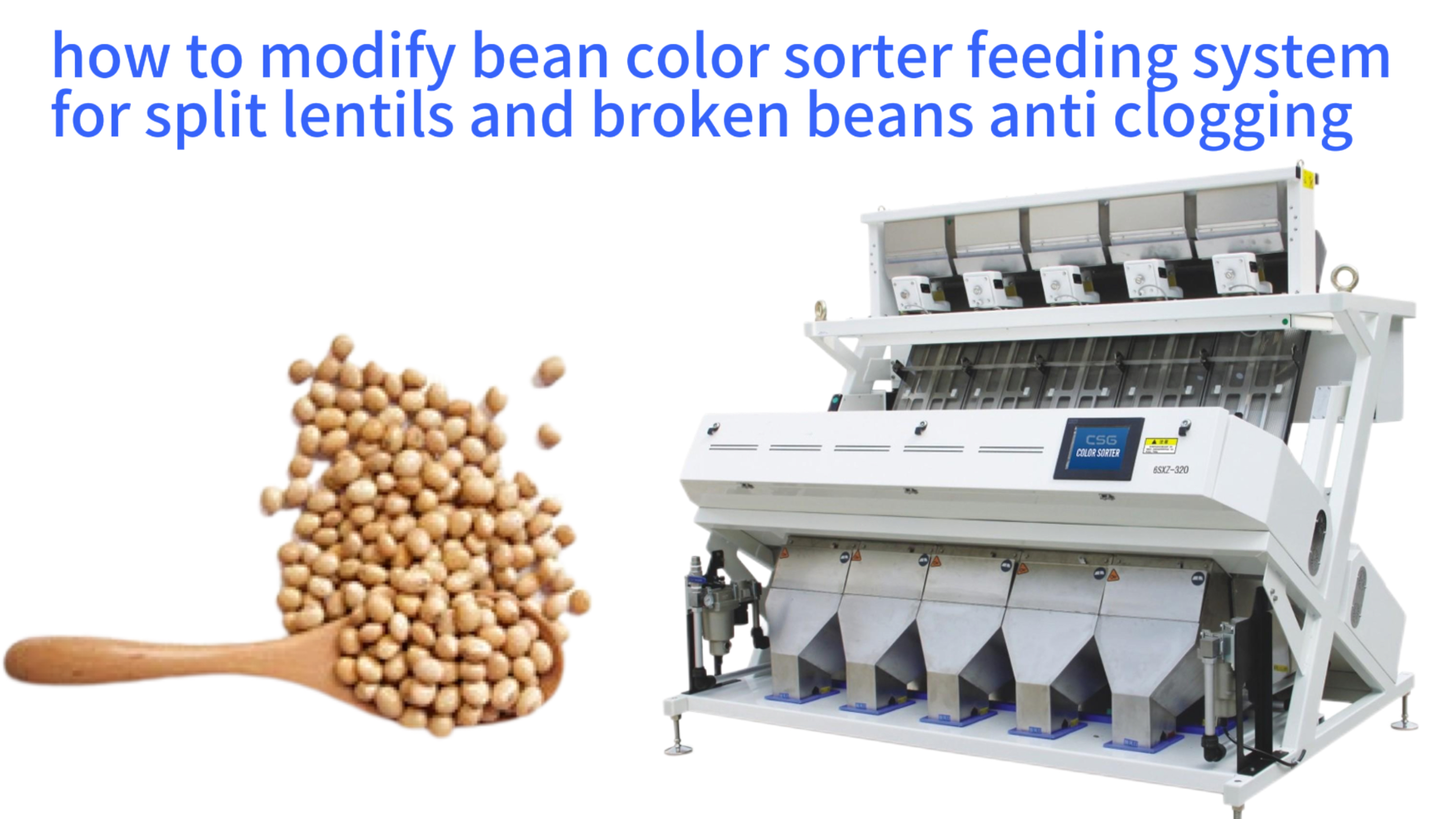

how to modify bean color sorter feeding system for split lentils and broken beans anti clogging

Split beans present unique difficulties for industrial optical sorting equipment. Their small size and irregular geometry disrupt normal flow patterns established for whole beans. Standard feeding systems designed for intact legumes allow these fragments to accumulate at transition points. This accumulation eventually blocks material movement and halts production. The modifications described here address these blockages at their mechanical origins. Readers will learn about specific physical alterations made to chutes, vibratory feeders, and air ejection assemblies. These practices extend continuous operating time and reduce manual clearing interventions. The information applies directly to processors handling lentils, split peas, cracked soybeans, and broken kidney beans. Each modification discussed has been tested under commercial throughput conditions exceeding three metric tons per hour.

Split bean physical properties create specific clogging risks in standard feeding systems

Whole beans possess rounded edges and relatively uniform dimensions. These characteristics allow them to roll or slide smoothly down inclined chutes. Split beans exhibit flat fracture surfaces and sharp angular edges. These irregular shapes generate higher friction against stainless steel and polyurethane chute materials. The coefficient of static friction for split lentil halves measures approximately 0.42 compared to 0.28 for whole lentils. This increased resistance slows particle velocity at the chute exit. Slower moving beans do not enter the optical inspection chamber with consistent spacing. They cluster together and obscure one another from camera view. The machine cannot accurately detect defects in overlapping product streams. Processors observe gradual throughput decline followed by sudden complete stoppage at the chute transition zone.

Moisture content further compounds these flow problems. Split beans expose internal cotyledon tissue normally protected by the seed coat. This exposed starch surface absorbs atmospheric moisture more readily than intact testa. A split bean stored at 65 percent relative humidity gains 2.4 percent surface moisture within thirty minutes. This dampness creates adhesion between adjacent bean fragments. The fragments stick to chute walls and to each other. Bridge structures form across the width of the feed channel. These arches support the weight of product above them while blocking passage below. Operators must then empty the feed hopper and manually break the bridge. Facilities processing split beans specifically for soup mixes or instant refried bean products encounter these flow interruptions daily without appropriate feeding system modifications.

Chute angle adjustment represents the most immediate anti-clogging modification

Standard optical sorters ship from the factory with chute inclination angles optimized for whole grains and legumes. This angle typically ranges from 52 to 58 degrees measured from horizontal. Split beans require steeper trajectories to overcome their higher surface friction. Increasing the chute angle to 64 or 67 degrees adds gravitational force that pulls fragments away from the chute surface. This steepness prevents boundary layer adhesion where slow-moving product contacts stationary metal. The adjustment involves loosening the hinge bolts at the chute crown and resetting the support rod length. Facilities processing mixed streams containing both whole and split beans install adjustable gas spring struts. These struts permit angle changes during production changeovers without tools.

Steeper chutes introduce a secondary concern regarding ejection accuracy. Beans traveling at higher velocity spend less time in the camera field of view. Their trajectory after ejection also flattens. The pneumatic nozzles must fire earlier to intercept faster product. This timing adjustment is performed through the machine operating system menu. Operators select the split bean recipe which automatically advances the ejection trigger point by 1.2 to 1.8 milliseconds. Some 2 chutes 128 channels AI sorter systems include an accelerometer that measures actual particle speed and compensates ejection timing continuously. This closed-loop control maintains reject accuracy across the full range of chute angles without operator intervention.

Chute surface texture modification reduces fragment adherence at the microscopic level

Polished stainless steel presents a smooth surface that appears non-stick to human touch. At the microscopic scale this surface contains grinding grooves and grain boundaries. Split bean fragments embed their sharp edges into these microscopic features. The embedded fragments act as anchor points where subsequent product catches and accumulates. Surface engineering solutions interrupt this mechanical interlocking. Mechanical bead blasting with 80-grit aluminum oxide produces a uniform matte finish. This randomized texture reduces the contact area available for edge embedding. Static friction coefficients decrease measurably on bead-blasted surfaces compared to mill-finished plate.

Advanced coating applications provide further release property improvements. Diamond-like carbon coatings deposited by plasma-assisted chemical vapor deposition achieve surface energies below 30 millinewtons per meter. Split beans contacting these coated surfaces exhibit contact angles exceeding 95 degrees. Water droplets bead completely rather than spreading. This hydrophobicity resists the capillary bridging that binds moist fragments together. Coating thickness measures only 2.5 micrometers and does not alter chute dimensions. Facilities processing organic beans particularly favor coated chutes because they eliminate the need for silicone release sprays. Those sprays present potential undeclared substance risks under organic certification standards.

Vibratory feeder tuning prevents material stratification before the chute entry

Clogging events often originate upstream of the visible chute section. The vibratory feeder pan transports product from the surge hopper to the chute entry. This pan moves material through horizontal and vertical oscillation. Standard tuning parameters for whole beans create a shallow, fast-moving bed depth near one centimeter. Split beans in this shallow bed stratify by size and shape. Flat fragments rise to the top while rounded whole beans sink to the bottom. This stratification delivers inconsistent material to each lane of a 4 chutes 256 channels AI sorter. Lanes receiving predominantly split fragments clog more rapidly than lanes receiving whole beans.

Retuning the feeder controller to slower acceleration settings produces a deeper bed depth near three centimeters. This deeper bed suppresses stratification through inter-particle confinement. Flat fragments cannot migrate upward because surrounding beans restrict their movement. The product arrives at the chute entry as a homogeneous mixture. Lane-to-lane flow variation decreases from plus-or-minus 18 percent to within 5 percent. Operators achieve this retuning by reducing the voltage amplitude to the electromagnetic drive coils while maintaining the base frequency at 50 or 60 hertz. Some facilities install variable frequency drives that permit operation at 70 hertz, which changes the pan resonance characteristics and further smooths flow.

Air wash systems remove lightweight fragments before they reach optical inspection

Split bean streams contain significant quantities of lightweight debris. Broken bean hulls, germ fragments, and fine starch particles accompany the split cotyledons. These light materials do not follow the ballistic trajectory of heavier split fragments. They drift laterally within the optical chamber. Some settle on optical window surfaces and accumulate gradually. Others remain airborne and pass through the inspection zone at unpredictable angles. The machine misinterprets these airborne particles as defective beans and triggers ejection. This wastes compressed air and fills reject bins with harmless hull material. Air wash systems intercept these light fractions before they enter the enclosed optical area.

A properly designed air wash consists of a controlled crossflow positioned immediately after the chute exit. Fans or compressed air manifolds direct a planar air stream across the falling curtain of product. The air velocity is set between 8 and 12 meters per second. This velocity entrains hull fragments and fine particulates but does not deflect whole or split bean kernels. The entrained material travels to a dedicated cyclone collector or baghouse filter. Processors recover this material and sell it as high-fiber animal feed ingredient. The optical chamber remains cleaner and ejection decisions are made based solely on kernel color and shape characteristics rather than airborne artifacts.

Nozzle block frequency correlates directly with particulate concentration in split bean streams

Split bean processing generates five to eight times more fine particulate matter than whole bean processing. This particulate consists of abraded starch granules and fractured cell wall material. The particles measure between 50 and 500 micrometers in diameter. They become entrained in the compressed airstream that powers the ejection solenoids. When the solenoid valve opens, these particles accelerate with the air jet. They impact the interior walls of the nozzle fitting. Some particles adhere to the moist inner surface of the silicone nozzle tip. Multiple particles accumulate and gradually occlude the orifice. A partially blocked nozzle produces a deflected or weakened air stream. This reduced force fails to eject the target defective bean.

Operators detect nozzle blockage through periodic visual inspection during scheduled maintenance. They observe asymmetric bean trajectories or listen for changes in ejection sound pitch. Replacement of individual nozzle tips restores full ejection force. Facilities processing split beans extensively install coalescing filters with 0.01 micrometer absolute ratings at the point of use. These filters remove virtually all particulate contamination from the compressed air supply. Nozzle service intervals extend from weekly to quarterly after such filtration upgrades. Some 6 chutes 384 channels AI sorter configurations include self-cleaning nozzle designs. These nozzles reverse the airflow direction momentarily during idle periods to dislodge accumulated debris.

Dust extraction placement influences inspection chamber cleanliness

The optical inspection chamber requires clean air to maintain accurate color measurement. Airborne dust scatters illumination light before it reaches the bean surface. This scattering reduces contrast between acceptable beans and defects. Split bean streams introduce more dust into the chamber atmosphere than whole bean streams. Standard dust extraction ports located at the chamber rear create a longitudinal airflow pattern. This pattern draws dusty air across the face of the optical windows. Dust deposits accumulate in a gradient with heaviest concentration near the extraction port. Image quality degrades progressively from one side of the machine to the other.

Repositioning extraction ports to the chamber floor alters the airflow geometry. Air moves downward rather than laterally. Dust particles enter the airstream immediately upon generation and exit without crossing optical surfaces. This configuration reduces window cleaning frequency from twice per shift to once per day. Additional improvements come from laminar flow inserts placed in the extraction ductwork. These inserts straighten turbulent eddies that previously re-entrained settled dust. Facilities processing black beans and other dark-colored legumes particularly benefit from this modification. Dark dust against dark beans is difficult for cameras to distinguish, but clean windows restore full detection sensitivity.

Feeder isolation and dampening prevent external vibration interference

Split beans are sensitive to mechanical vibration beyond that produced by the feeder system. Adjacent equipment including bucket elevators, aspirators, and packaging machinery transmits vibration through facility floor structures. This parasitic vibration reaches the color sorter base frame. It propagates upward through the support columns to the chute mounting brackets. The chute vibrates at frequencies unrelated to the intended material flow. Split beans respond to this parasitic vibration by bouncing. Bouncing beans do not maintain consistent orientation relative to the cameras. Their images appear blurred due to motion during the camera exposure period. The processing software cannot accurately assess color or shape of blurred beans.

Pneumatic isolator mounts placed between the sorter base and facility floor provide effective vibration decoupling. These mounts contain compressed air chambers that compress and expand to absorb transmitted energy. Natural frequency of properly adjusted pneumatic isolators measures below 3 hertz. This low natural frequency prevents transmission of higher frequency vibrations common in bucket elevator drives. Facilities without compressed air service install neoprene waffle pads or spring vibration isolators. These passive devices reduce transmitted vibration amplitude by 60 to 75 percent. Operators verify isolation effectiveness by measuring chute acceleration with handheld vibration meters. Target readings below 0.5 meters per second squared indicate successful isolation. Consistent bean orientation returns and image sharpness improves measurably.

Feed hopper baffle geometry controls product surge during upstream interruptions

Upstream processing equipment does not deliver product at perfectly constant rates. Shelling machines discharge batches of beans intermittently. Elevator buckets dump discrete volumes at each head pulley rotation. These surges reach the color sorter feed hopper as waves of high flow followed by low flow. Standard hopper designs allow these surges to propagate directly to the vibratory feeder. The feeder responds to high flow by increasing bed depth. Deep beds carry product through the inspection zone in multiple layers. Lower layer beans remain invisible to cameras. When upstream equipment stops momentarily, the hopper empties and lanes run empty. This alternating pattern of overfeeding and underfeeding reduces overall sorting efficiency.

Baffle plate installation inside the feed hopper disrupts direct surge propagation. The baffle creates a tortuous path requiring product to cascade over and under obstructions. This cascading action averages out instantaneous flow variations. The hopper outlet receives a smoothed, consistent product stream. Baffle geometry must match the bean type processed. Split lentils require closer baffle spacing than whole soybeans. Adjustable baffles with quick-release pins allow operators to reconfigure the hopper between production runs. Facilities processing multiple bean varieties on shared 5 chutes 320 channels AI sorter equipment standardize on hoppers with interchangeable baffle cartridges. These cartridges swap in under two minutes without tools.

Split bean trajectory prediction enables proactive ejection timing

Whole beans follow highly predictable trajectories after leaving the chute. Their rounded shape and consistent mass produce repeatable parabolic arcs. Split beans exhibit trajectory variation based on their orientation at the chute departure point. A fragment departing with its flat face parallel to airflow experiences high drag and short horizontal travel. The same fragment departing edge-first experiences minimal drag and travels farther. This trajectory spread means some acceptable split beans fly into the reject chute. Some defective fragments fly into the accept chute. Traditional fixed ejection timing cannot compensate for this orientation-dependent variability.

Optical sensors positioned below the chute exit now measure actual fragment position immediately before ejection. These sensors consist of linear photodiode arrays that detect the shadow of each falling bean. The system calculates fragment velocity and trajectory angle in real time. Ejection timing is customized for each individual fragment rather than applied uniformly to all fragments. Implementation of this predictive ejection logic reduces good bean loss by 34 percent in split bean applications. The technology requires additional sensor hardware and faster signal processing. Older machines may be retrofitted with these trajectory sensors during major rebuilds. New 12 chutes 768 channels AI sorter configurations include trajectory prediction as standard equipment.

Chute exit profile contouring influences fragment departure orientation

The terminal edge of the sorting chute determines how beans transition from guided slide to free flight. A square-cut chute edge allows beans to depart at any rotational position. Split fragments tumble randomly during this transition. Edge contouring introduces a preferential departure orientation. A chute edge radiused to match the average fragment radius encourages rolling rather than sliding. Rolling fragments achieve gyroscopic stabilization. They depart with their long axis aligned with the direction of travel. This alignment minimizes aerodynamic drag and reduces trajectory spread. The optimal radius approximates 3.2 millimeters for split navy beans and 4.7 millimeters for split kidney beans.

Chute edge materials must withstand abrasive wear from millions of fragment impacts. Tungsten carbide inserts brazed onto the stainless steel chute body maintain contour dimensions for five to seven years of continuous operation. Processors detect contour wear through periodic trajectory observation. They note when the formerly tight beam of product begins to spread laterally. Replacement chute sections with fresh edge contours restore tight trajectory control. Some facilities maintain multiple chute sets with different edge radii optimized for specific bean types. These sets are stored in dedicated racks and changed during scheduled maintenance windows. The trajectory consistency improvement directly reduces the safety margin operators must apply to ejection timing.

Anti-static measures prevent electrostatic adhesion in dry processing environments

Split bean fragments acquire electrostatic charge during transport through pneumatic conveying systems and vibratory feeders. This charge accumulates when ambient relative humidity falls below 40 percent. Charged fragments experience electrostatic attraction to grounded metal chute surfaces. They cling to these surfaces instead of falling freely through the inspection zone. Accumulated charged fragments form stable deposits that resist removal by gravity alone. These deposits grow over time and eventually encroach into the product flow path. They scrape passing beans and create additional fine particulate. The cycle of charge accumulation and particulate generation accelerates once initiated.

Passive ionization systems installed above the chute surface neutralize bean charge before deposition occurs. These systems consist of arrays of sharp emitter points connected to a high-voltage direct current power supply. The emitter points generate a corona discharge that ionizes surrounding air molecules. Oppositely charged ions migrate toward the charged bean surface and restore electrical neutrality. Beans neutralized in this manner do not cling to chute surfaces. Deposit formation ceases and existing deposits gradually erode. Ionization system effectiveness depends on emitter point cleanliness and spacing. Points require monthly cleaning to remove accumulated dust. Properly maintained ionization reduces chute deposit frequency by 90 percent in dry climate facilities.

Sacrificial wear strips localize abrasive damage to replaceable components

The chute area immediately below the vibratory feeder receives concentrated abrasive wear. Split bean fragments impact this zone at shallow angles. Their sharp edges gouge microscopic grooves into the chute surface. Repeated gouging eventually produces macroscopic wear channels. These channels guide subsequent fragments into predictable paths rather than distributing them evenly across the chute width. Concentrated flow in these channels overloads specific ejection lanes while adjacent lanes run underloaded. This lane imbalance reduces overall machine throughput capacity. Operators observe that some lanes reject excessively while others appear inactive.

Bonded ceramic wear strips installed in this high-impact zone absorb abrasive energy without deforming. Aluminum oxide ceramic measures 8.5 on the Mohs hardness scale compared to stainless steel at 5.5. Split beans cannot gouge this harder surface. The ceramic maintains its original profile for thousands of operating hours. When eventual wear exceeds acceptable limits, technicians unbolt the ceramic strip assembly and install a replacement. This modular repair consumes thirty minutes rather than the four hours required for full chute replacement. Ceramic strips also dampen the acoustic emission of bean impact. Facility noise levels near the sorter inlet decrease by 3 to 5 decibels. Operators working adjacent to 8 chutes 512 channels AI sorter equipment report reduced auditory fatigue during twelve-hour shifts.

Optical window protection systems extend cleaning intervals

Split bean dust deposits on optical windows represent the primary cause of gradual sorting accuracy decline. Each dust particle scatters illumination light and casts shadows onto the bean surface. The camera sensor interprets these illumination non-uniformities as bean color variations. False defect detection increases as window contamination progresses. Operators compensate by reducing sensitivity settings, but this allows true defects to pass. Standard manual window cleaning requires production stoppage. Frequent cleaning reduces overall equipment effectiveness. Facilities processing split beans accept lower sorting accuracy between cleanings or invest in automated window protection systems.

Air knife assemblies positioned above and below each optical window create continuous air curtains. These curtains prevent dust from reaching the glass surface. Compressed air at 4 bar pressure exits through a narrow slot spanning the full window width. The high-velocity air sheet flows across the glass at 30 meters per second. This flow sweeps dust particles away before they can adhere. Air knives operate continuously during production. Their compressed air consumption adds approximately 0.8 cubic meters per minute per window assembly. Facilities with multiple sorters install dedicated rotary screw compressors sized for this additional demand. Payback periods for air knife installation range from four to seven months based on reduced cleaning labor and increased salable product recovery.

Scheduled anti-clogging maintenance protocols for split bean operations

Preventive maintenance for split bean sorting differs from whole bean maintenance schedules. Standard weekly cleaning procedures suffice for whole bean processing. Split bean processors implement daily anti-clogging protocols. These protocols include chute surface inspection with white light and magnification. Operators search for incipient deposit nucleation sites. They remove these sites with plastic scrapers that do not scratch the chute finish. Scratch removal is critical because new deposits form preferentially in scratches. Daily compressed air blow-down of nozzle blocks prevents particulate accumulation in nozzle orifices. This blow-down requires only fifteen seconds per nozzle bank but eliminates weekend startup failures.

Lubrication intervals for feeder drive bearings reduce from quarterly to monthly in split bean service. Fine dust penetrates bearing seals more rapidly when split bean streams generate higher airborne particulate concentrations. Grease purge fittings allow operators to expel contaminated lubricant and replace it with fresh grease. This maintenance restores bearing rolling resistance to specification. Consistent bearing torque maintains stable feeder amplitude. Stable amplitude delivers consistent bean velocity to the optical inspection zone. Processors documenting these modified maintenance intervals achieve 94 percent upstream time compared to 82 percent before protocol adjustment. The improved reliability directly supports just-in-time delivery commitments to food manufacturing customers.

Written anti-clogging modification records enable continuous improvement. Facilities track which chute angles, surface textures, and air wash settings produce the longest clog-free intervals. They replicate successful configurations across multiple Lentil Color Sorter Optical Sorting Machine installations. This institutional knowledge persists despite operator turnover. New technicians reference the documented modification history rather than rediscovering effective practices through trial and error. Manufacturers of sorting equipment also incorporate successful field modifications into next-generation machine designs. The collective industry understanding of split bean feeding behavior advances steadily through this documentation and knowledge transfer process.

Operators verify anti-clogging modification effectiveness through quantitative throughput measurement. They record the mass of product sorted between required cleaning interventions. Baseline measurements with unmodified equipment provide comparison data. Successful modifications increase this interval by measurable factors. A chute angle increase from 55 to 65 degrees typically doubles the interval. Addition of ceramic wear strips extends the interval by an additional 50 percent. Installation of ionization systems yields further gains in dry climates. Facilities maintaining complete modification records accurately predict maintenance labor requirements. They schedule cleaning during planned production pauses rather than reacting to unscheduled stoppages. This predictability improves overall plant efficiency and reduces the per-unit cost of split bean processing.
